Lomanco Turbines BEB14

Set of externally braced turbine + adjustable neck + universal base. Lomanco Turbines offer all of the essentials for energy savings and are geared toward going green. The turbine´s design features permanently lubricated upper and lower ball bearings that ensure long life and no maintenance. The turbine´s large flashing makes installation easy even in a very complicated roof. When properly installed, the turbine reduces energy bills and the likelihood of winter ice build-up.

Lomanco Turbines BEB14
Files to download

Features & Benefits

  • Very durable, externally braced turbine - tested to withstand winds of 145 m.p.h.
  • Extends the life of the roof structure by exhausting damaging heat and moisture from attic space
  • Wind powered turbine maximizes ventilation capacity while geared towards going green
  • 14“ neck diameter - moves up to 37% more air than the 12"
  • Permanently lubricated upper and lower ball bearings that ensure long life and no maintenance
  • All-aluminium rust-free construction
  • Rigid spider-type structure
  • Easy installation
  • Exclusive vari-pitch base adjusts to a roof pitch of 0° - 45°
  • Includes roof pitch bevel to help determine roof pitch
  • 21 air-foil curved vanes with rolled vane edges to deflect water
  • Lifetime warranty for residential use

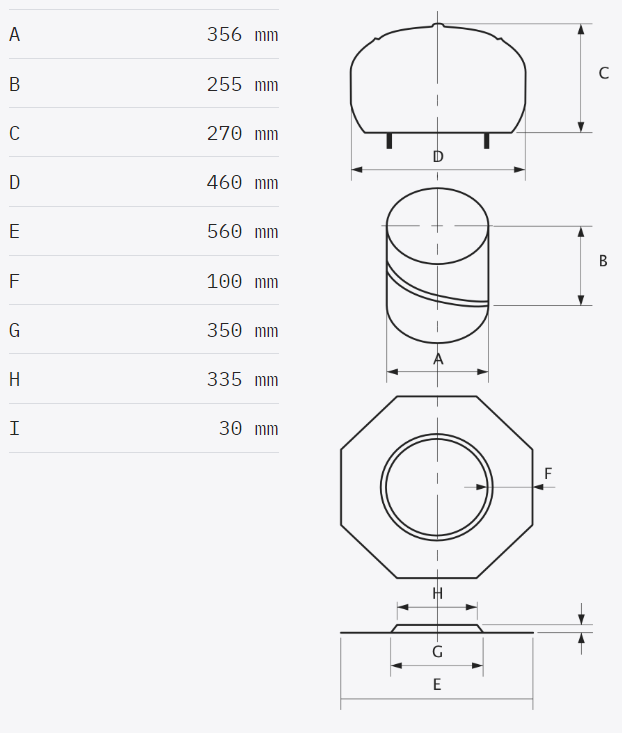

Dimensions

Dimension image

Calculating ventilation

Ventilated area Units needed
0-90 m2 2
> 90 m2 2
> 140 m2 2
> 185 m2 3
> 230 m2 3
Wind speed Exhausted air (m/3)
8 km/h 710 m³
13 km/h 1200 m³
24 km/h 2250 m³

Pitched roof

Pitched image

Flat roof

Pitched image

In the box

  • Base
  • Adjustable neck
  • Reinforced turbine head
  • Roof pitch bevel
  • Screws
  • Installation Guide

Our tip

The ideal choice for gusty wind areas, tested to withstand winds of 145 m.p.h..

Lifetime Warranty

All Lomanco products come with a Lifetime Warranty. The warranty is transferable from the original owner to subsequent owners and applies to residential use only. Commercial use is covered by a 15 year warranty. We provide a standard 2 year warranty on all the accessories.
