Lomanco Turbines Set EVL1400 + BEB14

Set of turbine + auxilliary electric ventilator EVL 1400. Auxiliary ventilators are used to guarantee or increase the turbine’s immediate output during adverse weather conditions or poor current performance. The ventilators are not designed for continuous operation, instead they serve to intensify ventilation. EVL sets are equipped with connecting necks for easy installation and an extra durable, externally braced BEB 14" turbine. It is recommended to place the ventilator below the neck or extension part, not directly under the turbine. The volume flow rate is up to 1400 m3/h.

Lomanco Turbines Set EVL1400 + BEB14

Features & Benefits

  • System combining an auxiliary electric ventilator and an externally braced 14" turbine
  • High quality electric ventilator EBM Papst
  • Supplied with electrical box for easy installation
  • Low electricity consumption
  • Volumetric flow rate 1400 m3/h
  • Optional sensor connectivity (humidity, CO2, PIR) or timer
  • Popular solution for apartment houses

Dimensions

Nominal voltage 230 V
Frequency 50/60 Hz
Speed 1300 rpm
Max. input power 35 W
Max. back pressure 35 Pa
Max. ambient temp. -30 to +50 °C
Sound pressure level 58 dB(A)
Air flow 1400 m³/h
Type of protection IP 54

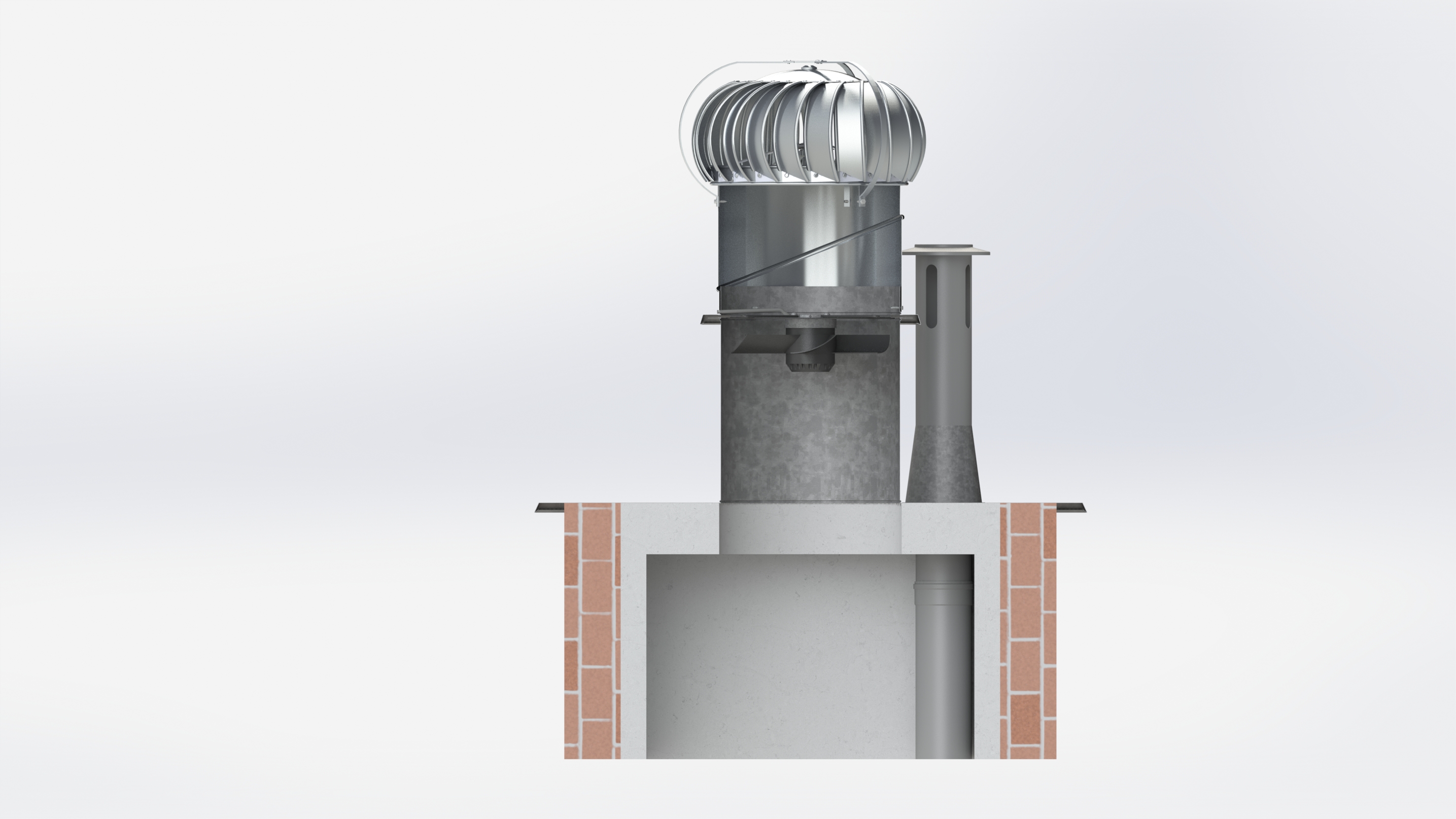

Flat roof

Pitched image

In the box

  • Reinforced turbine BEB14
  • Adjustable neck
  • Electric ventilator
  • Octagonal base
  • Screws
  • Installation Guide

Our tip

Every apartment building must have a high-quality solution for ventilating bathrooms, lavatories and kitchens. Ventilation is solved by a ventilation shaft. Lomanco turbines are a perfect substitute for electric ventilators – low acquisition costs and zero operating costs ensure high savings. Use of Lomanco turbines ensures a true draft in the shaft and prevents the odours from individual apartments mixing. We recommend combining Lomanco turbines and small axial ventilators. To regulate the ventilation it is best to use gratings that allow you to close or open the room outputs.

Lifetime Warranty

All Lomanco products come with a Lifetime Warranty. The warranty is transferable from the original owner to subsequent owners and applies to residential use only. Commercial use is covered by a 15 year warranty. We provide a standard 2 year warranty on all the accessories.

Price list

PDF
Lomanco Price List
File size: 802.15 KB

Want to place an order?
Need help?

Realizations

Installation

Installation Guide
PDF
Installation Guide BIB and BEB turbine
File size: 2.84 MB

Documents for download

PDF
Datasheet - EVL1400
File size: 307.52 KB
PDF
Installation Guide TIB and TEB turbine
File size: 1.41 MB
