Lomanco Turbines BIB12 Black

Lomanco Turbines offer all of the essentials for energy savings and are geared toward going green. The turbine´s design features permanently lubricated upper and lower ball bearings that ensure long life and no maintenance. The turbine´s large flashing makes installation easy even in a very complicated roof. When properly installed, the turbine reduces energy bills and the likelihood of winter ice build-up.

Lomanco Turbines BIB12 Black
Files to download

Features & Benefits

  • Extends the life of the roof structure by exhausting damaging heat and moisture from attic space
  • Wind powered turbine maximizes ventilation capacity while geared towards going green
  • Set of turbine, adjustable neck and universal base. 12“ neck diameter
  • Permanently lubricated upper and lower ball bearings that ensure long life and no maintenance
  • All-aluminium rust-free construction
  • Rigid spider-type structure
  • Easy installation
  • Tested to withstand winds of 110 m.p.h.
  • Exclusive vari-pitch base adjusts to a roof pitch of 0° - 45°
  • Includes roof pitch bevel to help determine roof pitch
  • 21 air-foil curved vanes with rolled vane edges to deflect water
  • Lifetime warranty for residential use

Dimensions

A 305 mm
B 195 mm
C 250 mm
D 440 mm
E 510 mm
F 100 mm
G 300 mm
H 278 mm
I 25 mm
Dimension image

Calculating ventilation

Ventilated area Units needed
0-90 m2 2
> 90 m2 2
> 140 m2 3
> 185 m2 4
> 230 m2 4
Wind speed Exhausted air (m/3)
8 km/h 590 m³/h
13 km/h 930 m³/h
24 km/h 1750 m³/h

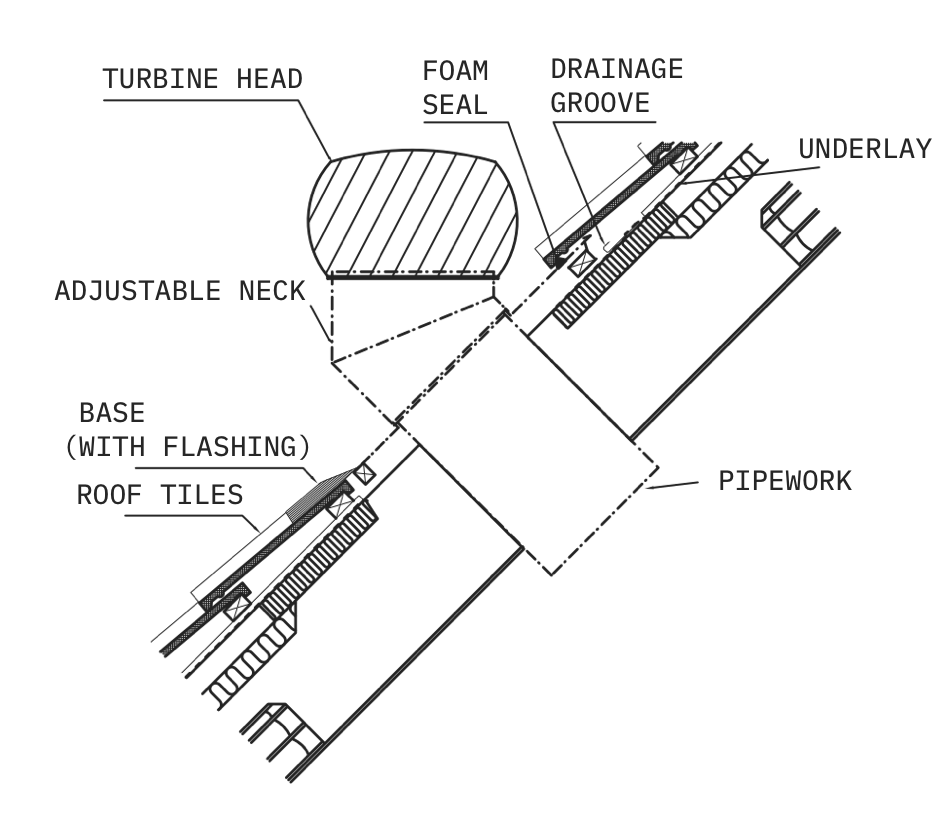

Pitched roof

Pitched image

Flat roof

Pitched image

In the box

  • Base
  • Adjustable neck
  • Turbine head
  • Roof pitch bevel
  • Screws
  • Installation Guide

Our tip

The turbine reduces energy bills and the likelihood of winter ice build-up.

Lifetime Warranty

All Lomanco products come with a Lifetime Warranty. The warranty is transferable from the original owner to subsequent owners and applies to residential use only. Commercial use is covered by a 15 year warranty. We provide a standard 2 year warranty on all the accessories.

Price list

PDF
Lomanco Price List
File size: 802.15 KB

Want to place an order?
Need help?

Realizations

Installation

Installation Guide
PDF
Installation Guide BIB and BEB turbine
File size: 2.84 MB

Available sets

The turbines are also available as a part of complete sets for pitched and flat roofs and for installation on ventilation shafts within tower blocks and apartment buildings.

Lomanco Turbines Set for Pitched Roofs 12"
Lomanco Turbines Set for Pitched Roofs 12"
Size: 12 inch

Documents for download

PDF
Metal Roof Installation Guide BIB and BEB turbine
File size: 6.82 MB
DWG
Lomanco - flat roof
File size: 45.67 KB
DWG
Lomanco - pitched roof ventilation
File size: 115.96 KB
BIM
BIM Lomanco BIB12
File size: 1.31 MB
