VILPE Vittnge 2-Waved Pass-Through

Vittinge clay tile roofing.

VILPE Vittnge 2-Waved Pass-Through
Files to download

Product Description

The Vittinge pass-through sets are designed for the pass-through of a clay tile roof for VILPE® P-type pipes and roof fans with a diameter of 110 - 160 mm as well as for aerial sleeves. Vittinge pass-through sets are available for 1- and 2-wave clay tiles. The Vittinge 1-wave pass-through set is suitable for the E13 clay tile, the dimensions of which are 420 x 235 mm. The Vittinge 2-wave pass-through set is suitable for the T11 clay tile, the dimensions of which are 420 x 280 mm.

A seal for underlay and screws is included in the pass-through sets.

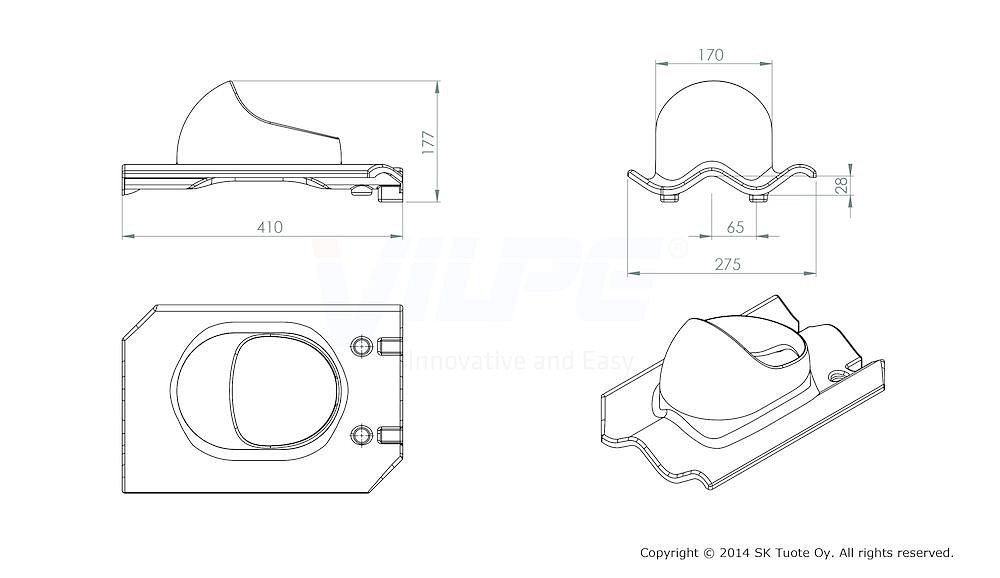

Dimensions

Dimension image
COLOUR PRODUCT N.
Brick Red - RAL8004 74010

In the box

  • Pass-through
  • Underlay ring
  • Screws
  • Installation instructions

Price list

PDF
VILPE Price List
File size: 701.14 KB

Want to place an order?
Need help?

Installation

Installation Guide
] %} #}
