VILPE XL Universal MK1 Pass-Through

Profiled steel roofing with tile pattern that has wave distance of 183.3 mm, wave length of 350 mm and wave height of 39 mm.

VILPE XL Universal MK1 Pass-Through
Files to download
DWG

Product Description

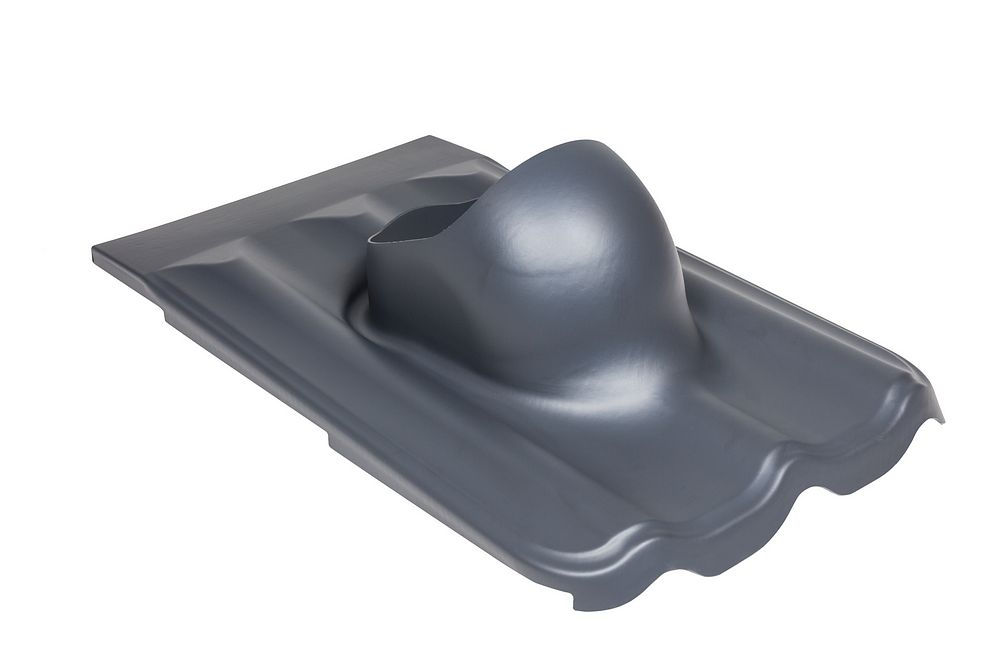

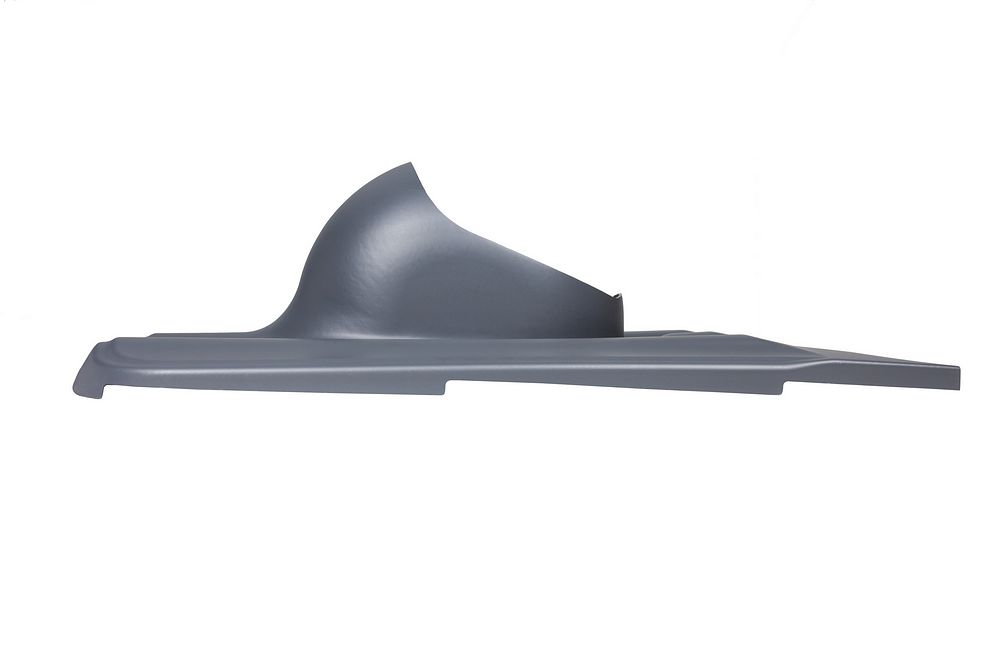

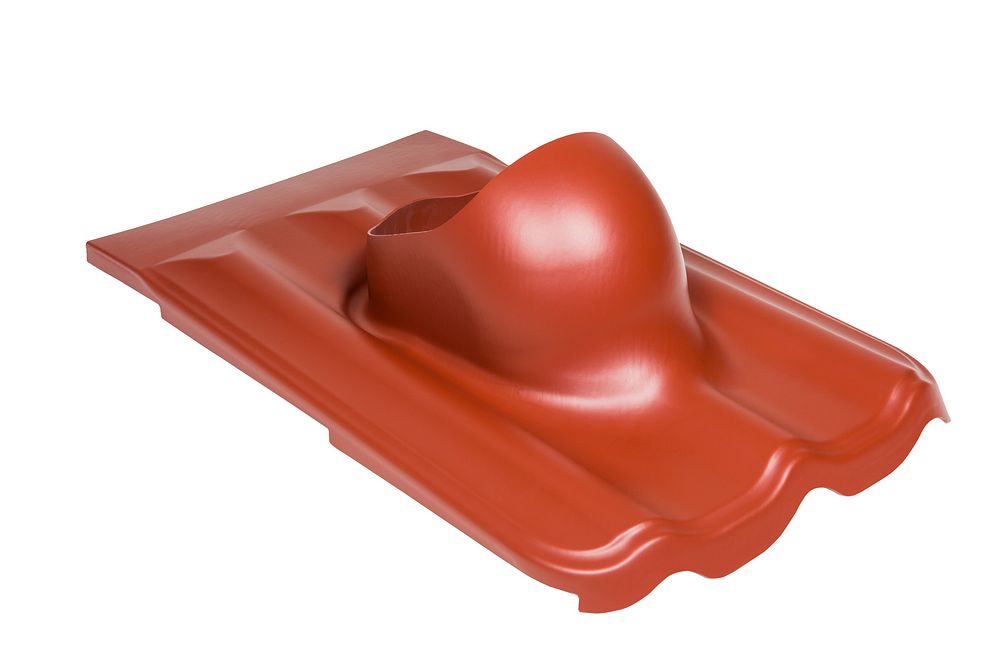

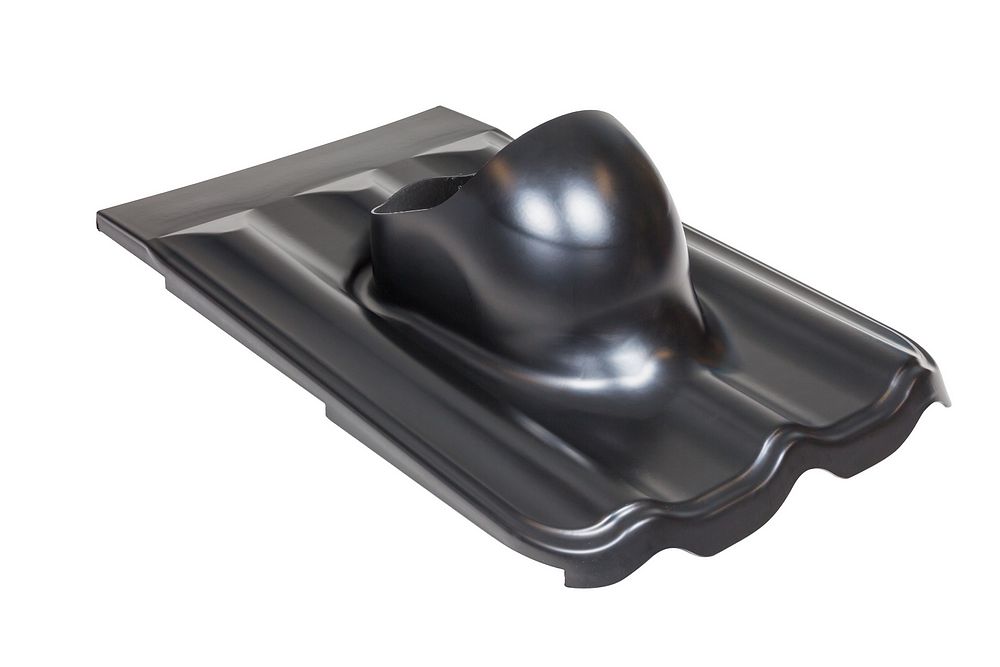

The XL Universal pass-through set MK 1 is designed for installing VILPE® P-series 160-250 mm ventilation pipes, exhaust pipes, roof fans and pipe seals. The XL Universal pass-through set MK 1 is pre cutted to fit perfectly to the profiled steel roof that has wave distance 183,3 mm, wave length 350 mm and wave height 39 mm (Equivalent of for example Ruukki Monterrey). The MK1 model can be installed also on the roof slope by using the Flue joint for metal roofing.

Colours

Dimensions

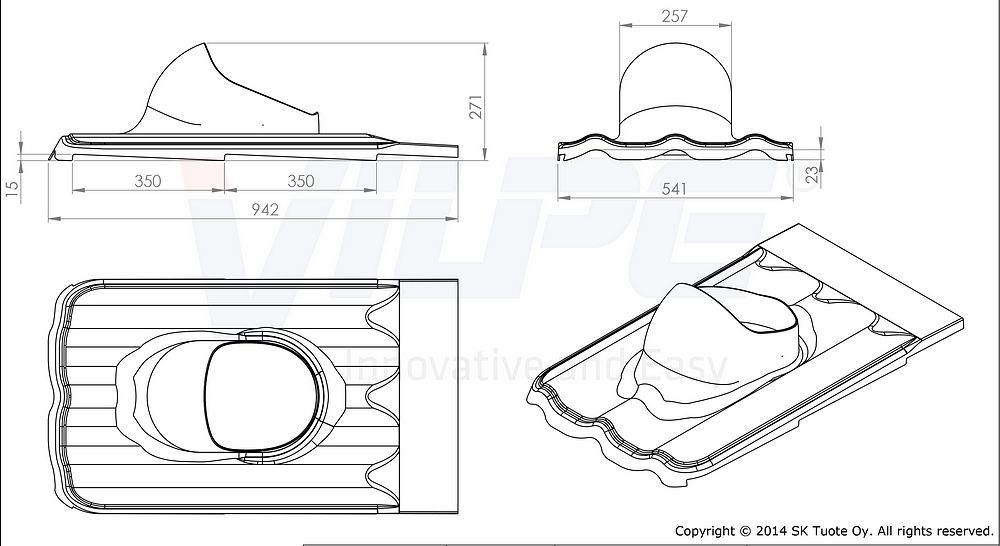

Dimension image
COLOUR PRODUCT N.

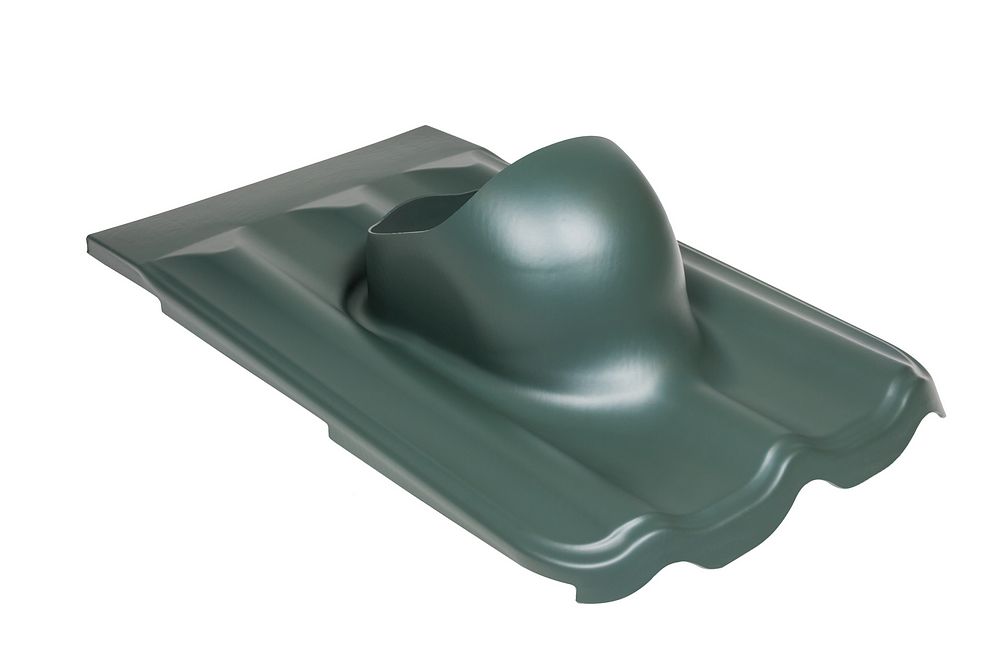

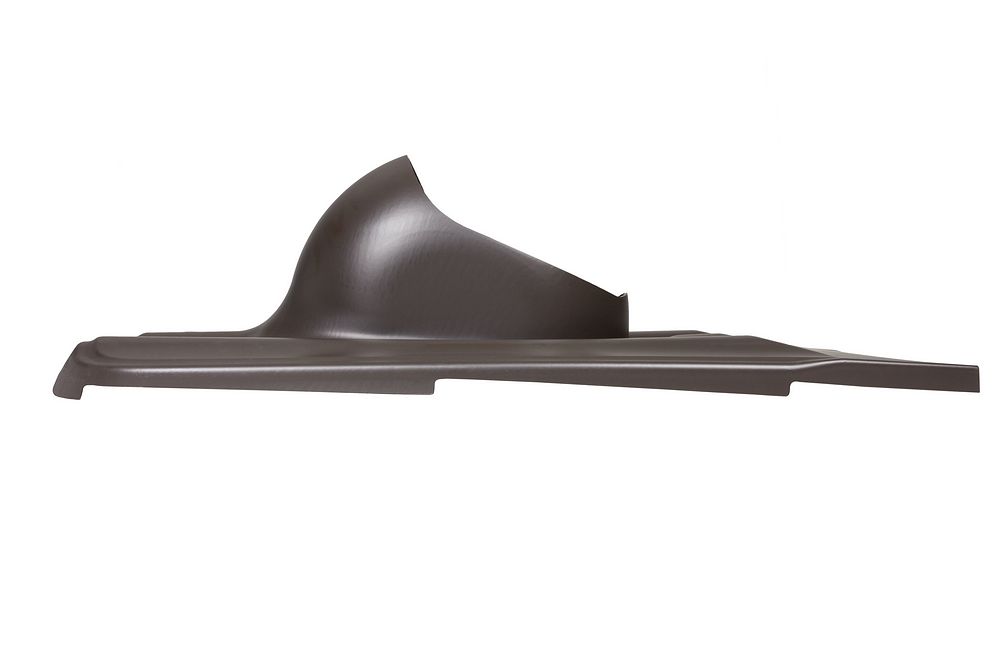

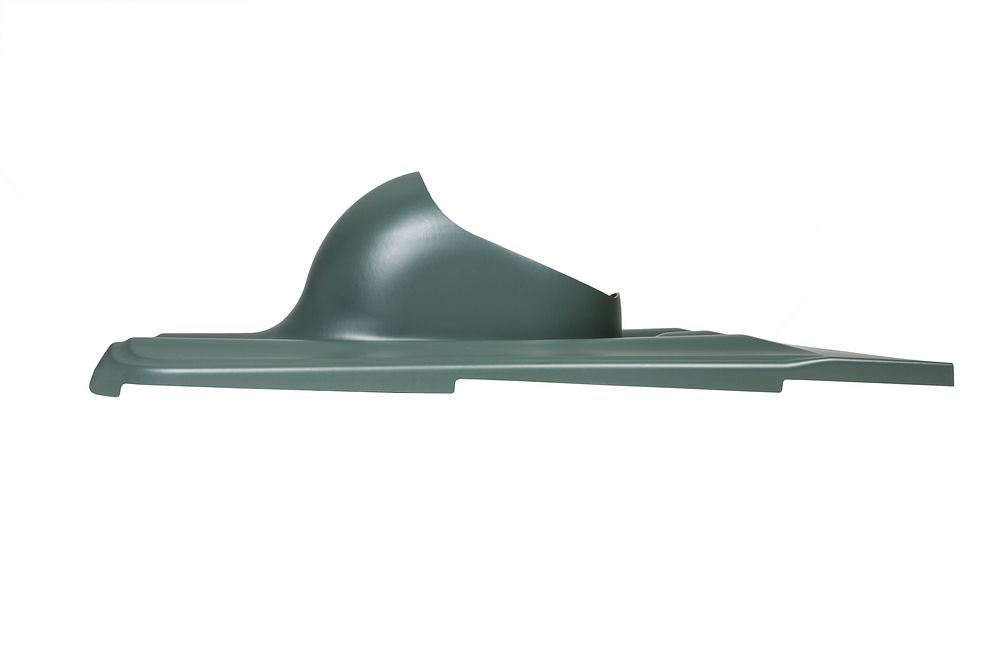

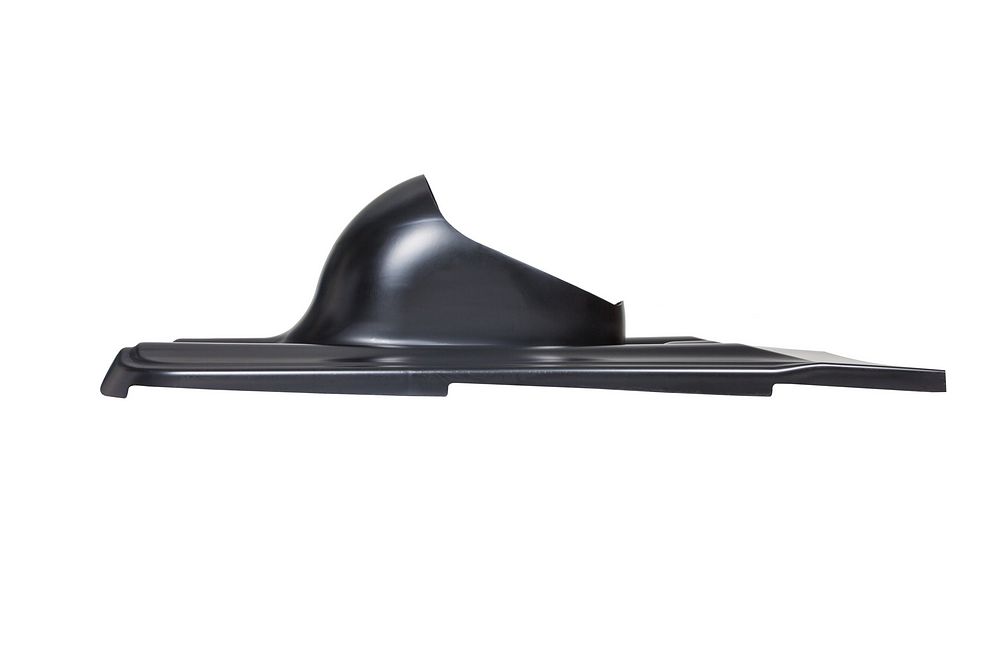

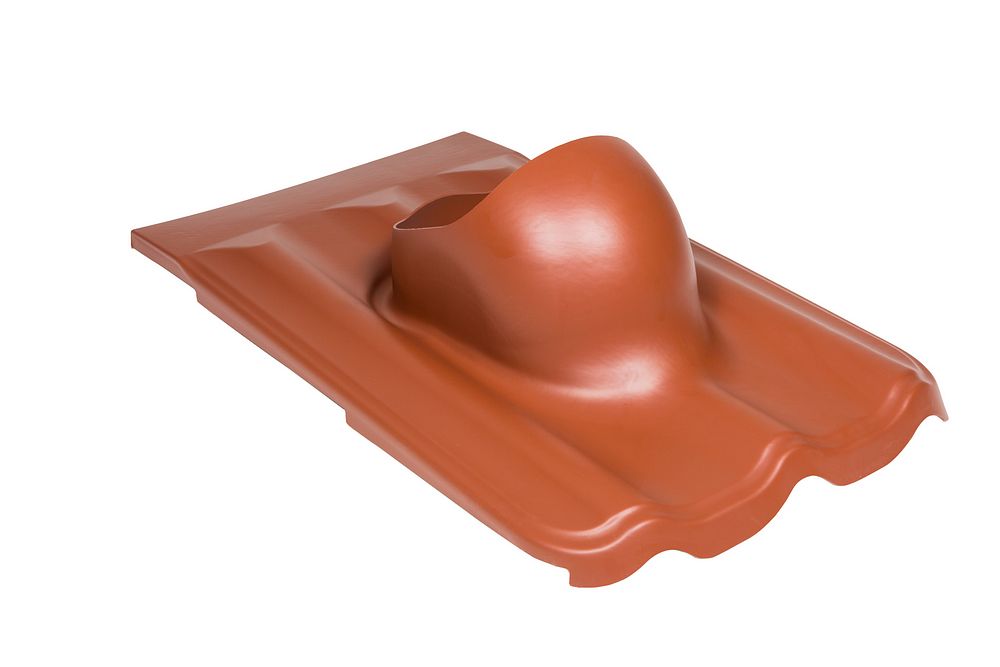

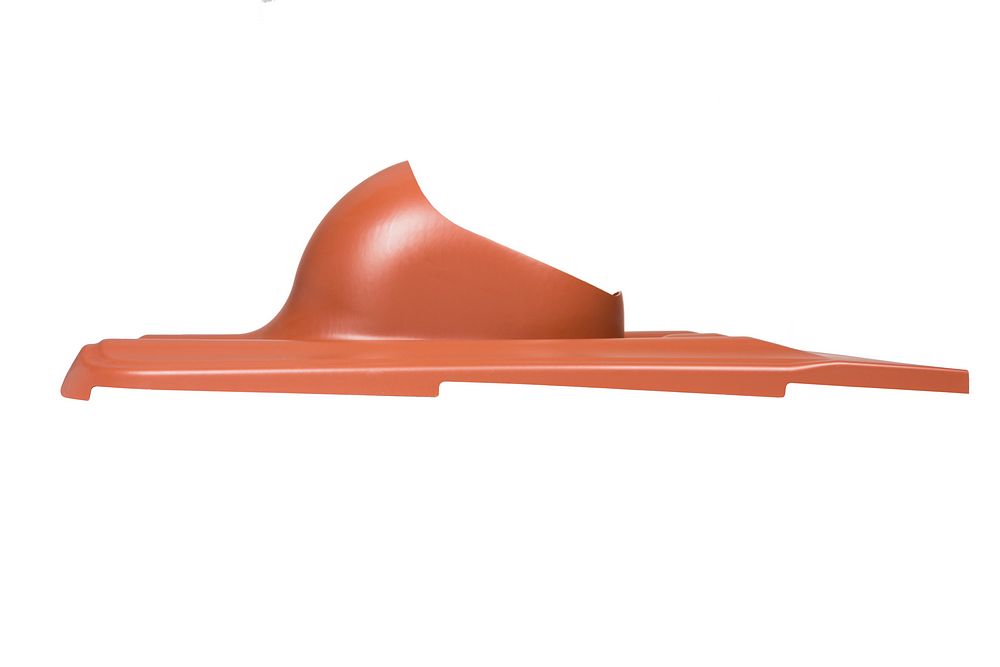

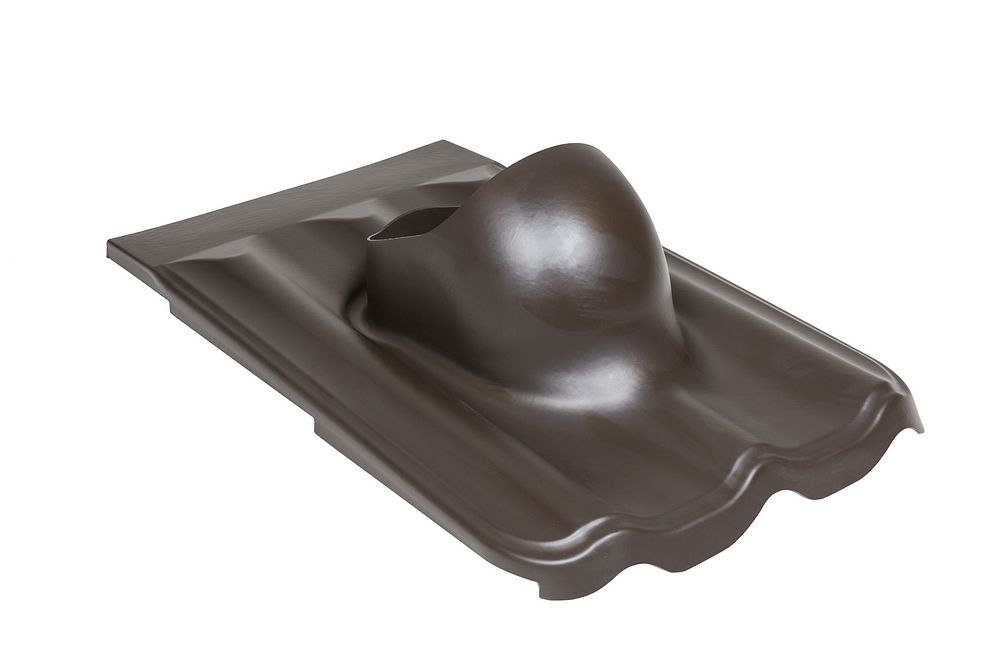

Black - RAL9005 735512
Brown - RAL8019 735514
Green - RAL6020 735516
Grey - RAL7015 735517
Red - RAL3009 735518
Brick Red - RAL8004 735519

In the box

  • Pass-through
  • XL underlay ring
  • Screws
  • Installation instructions

Price list

PDF
VILPE Price List
File size: 701.14 KB
Download
