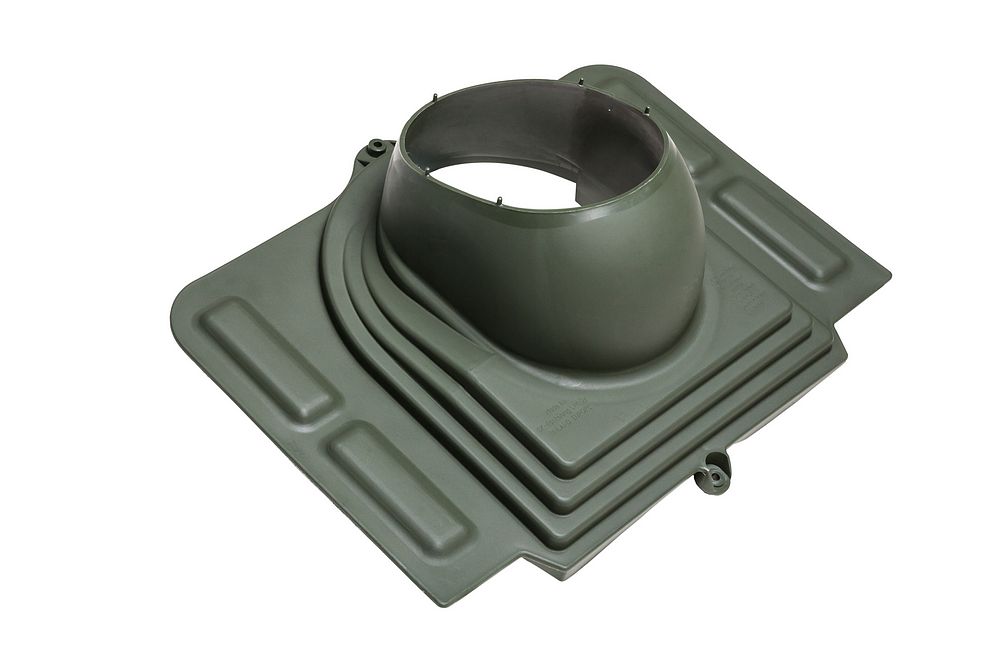

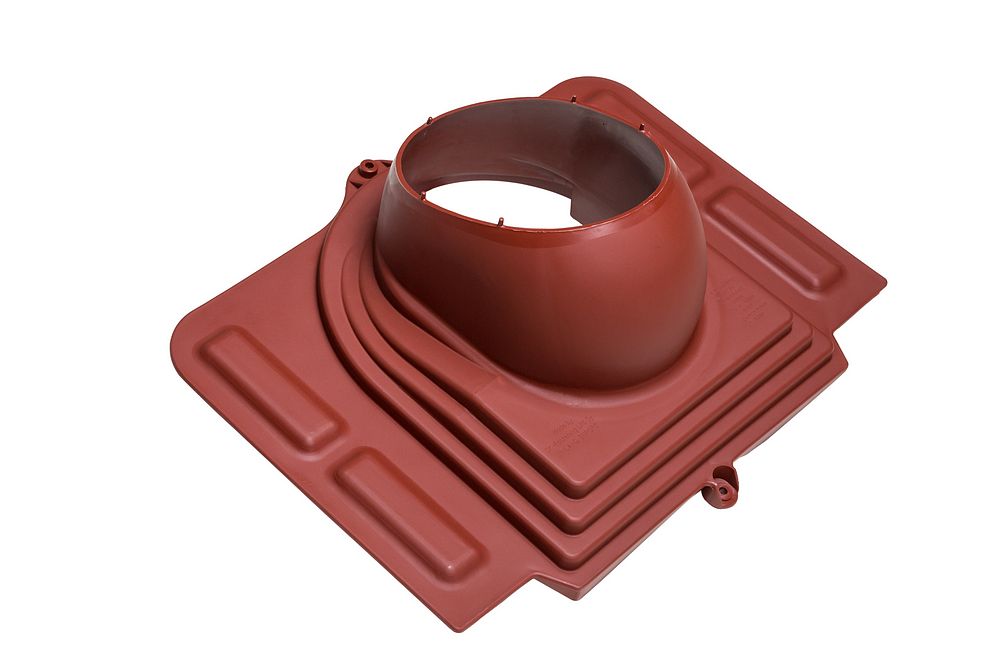

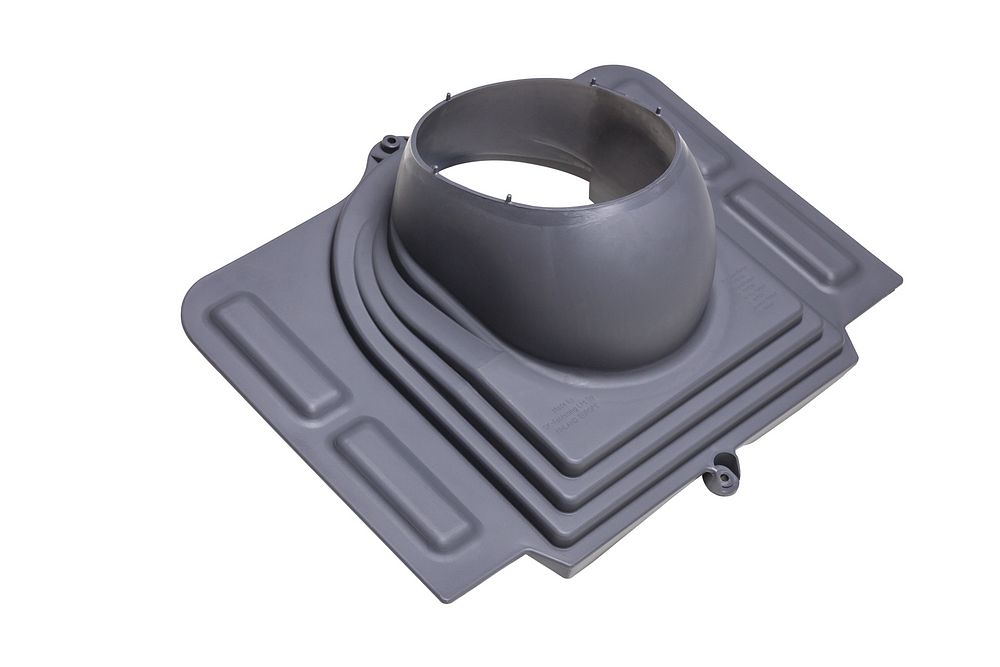

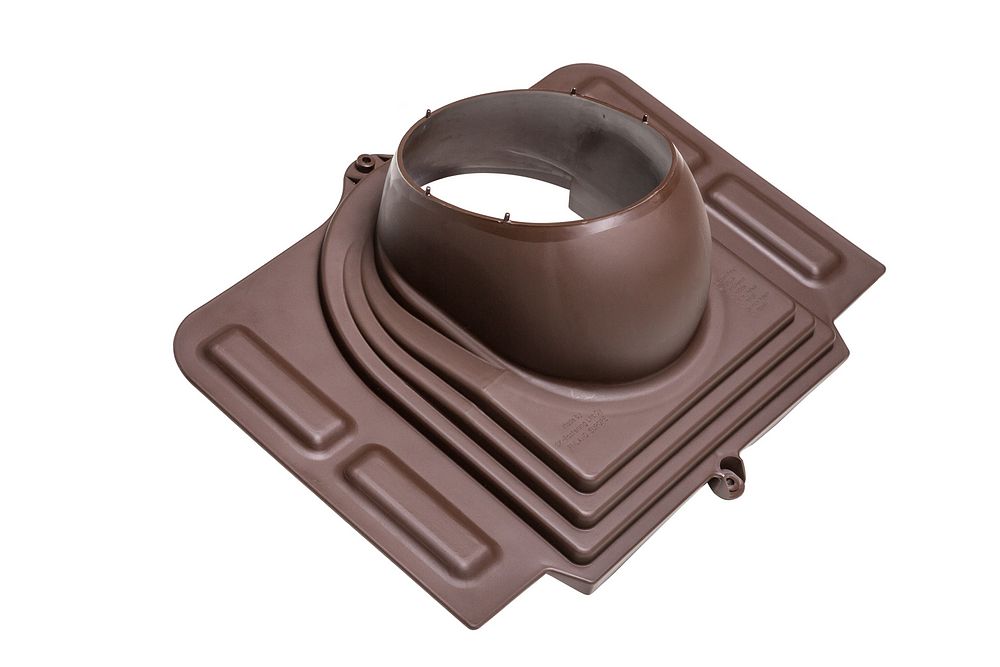

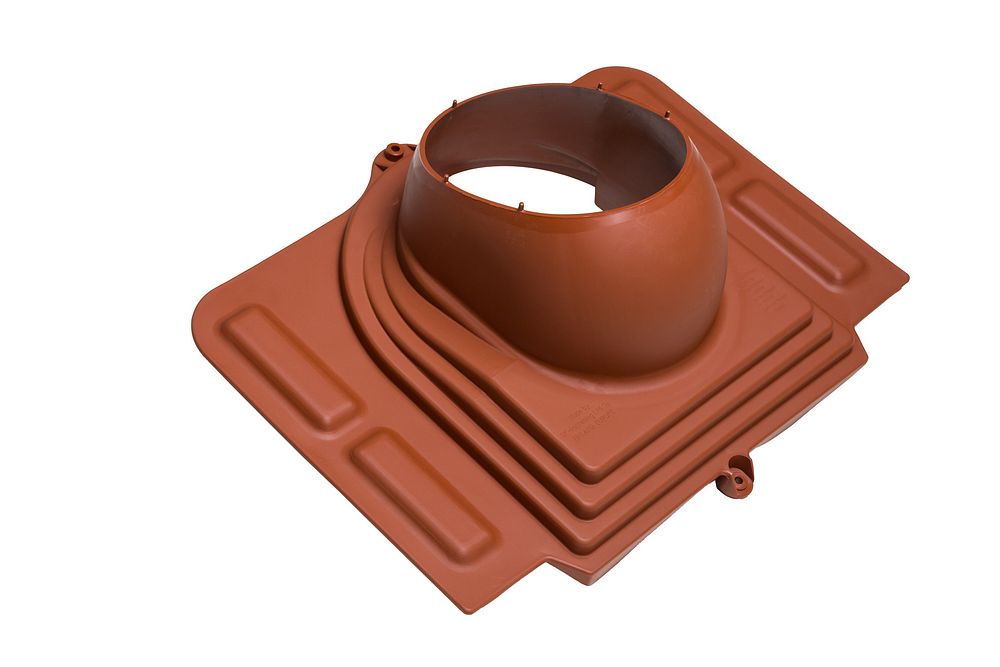

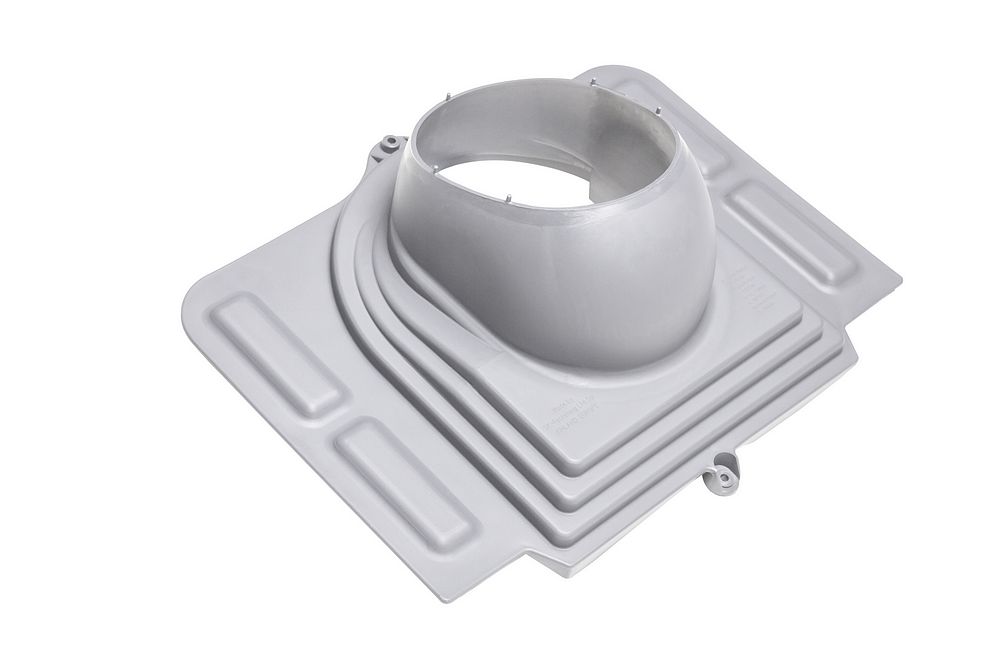

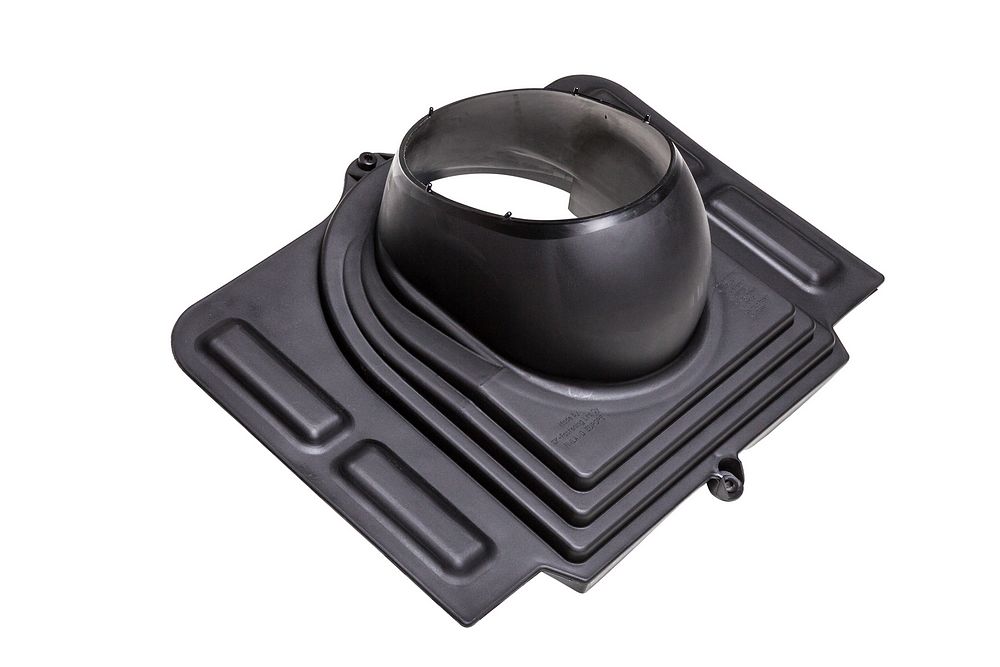

VILPE Steel Pass-Through

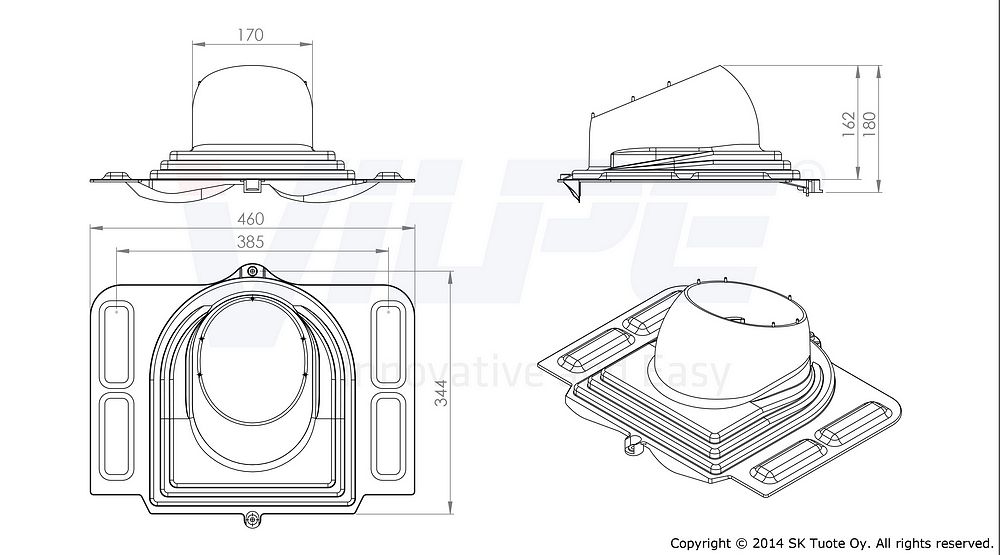

The steel pass-through set is designed for the pass-through of profiled metal roofing for VILPE® P-type pipes and roof fans with a diameter of 110 - 160 mm as well as for aerial sleeves. The tightness of the steel pass-through set is based on a rubber seal that has an aluminium flange at the bottom, which is moulded according to the shape of the steel. However, the steel pass-through set is not suitable for high angular profiles (see special solution, p. 17). The width of the pass-through is 460 mm and the length 355 mm.
A sealing compound, screws and a seal for underlay are included in the steel pass-through set.
