VILPE Profiled Steel Pass-Through

All round profiled metal sheet roofing types (tilepatterned). Minimum length of tile pattern 350 mm. Mouldable and fully waterproof thanks to the rubber seal on the bottom surface.

VILPE Profiled Steel Pass-Through
Files to download

Product Description

The Profiled steel pass-through set is designed for installing VILPE® P-series 75-160 mm ventilation pipes, exhaust pipes, roof fans and aerial sleeves on all round profiled roofing (roof tile profile). The minimum length of a profiled roof tile in the metal sheet should be 350 mm. Flexible combination of rubber and plastic allows shaping and ensures a good fit on different kinds of profiled roofing. Thanks to a rubber seal mounted on the lower surface of the pass-through element the product is fully watertight.

Fixing screws, sealing compound and a sealing for the underlay are included.

Dimensions

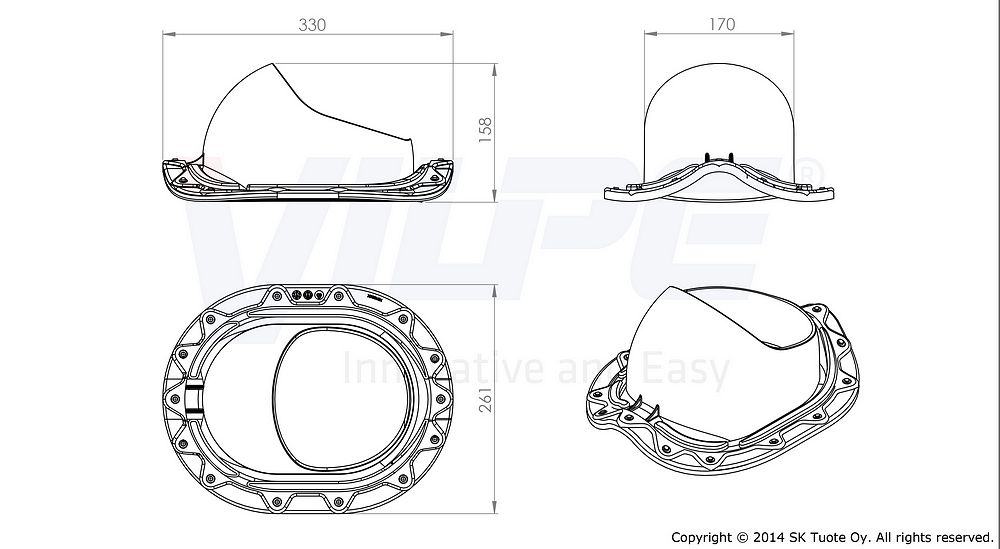

Dimension image
COLOUR PRODUCT N.
Black - RAL9005 75172

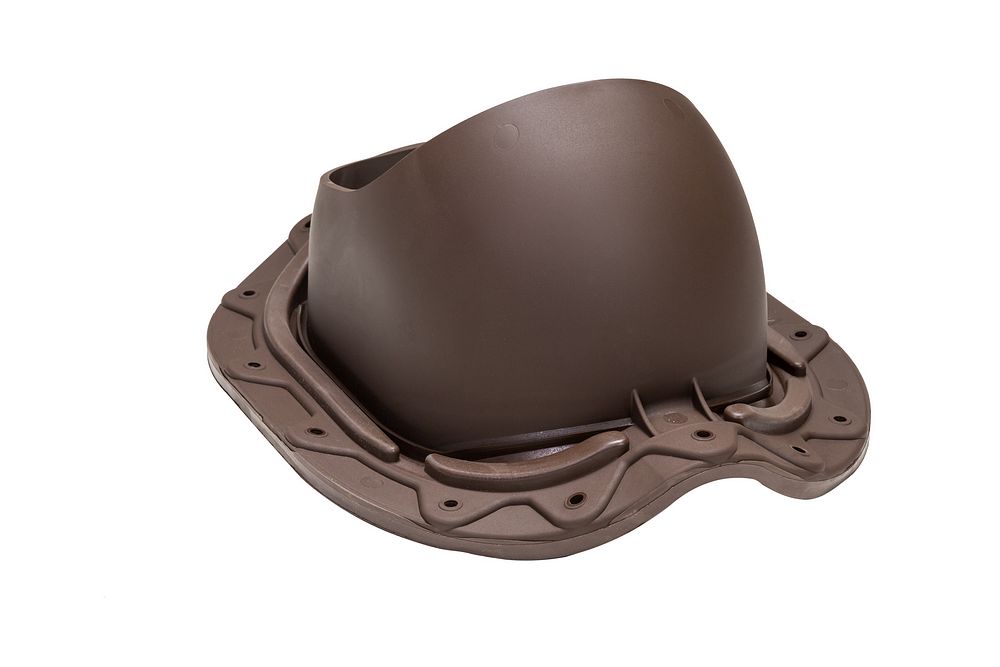

Brown - RAL8019 75174

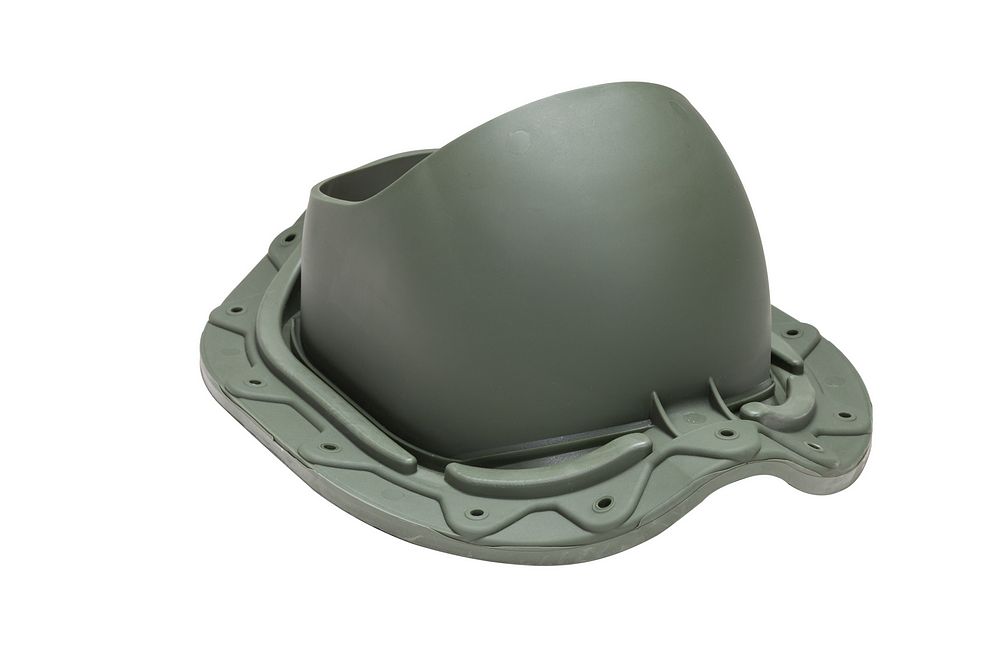

Green - RAL6020 75176

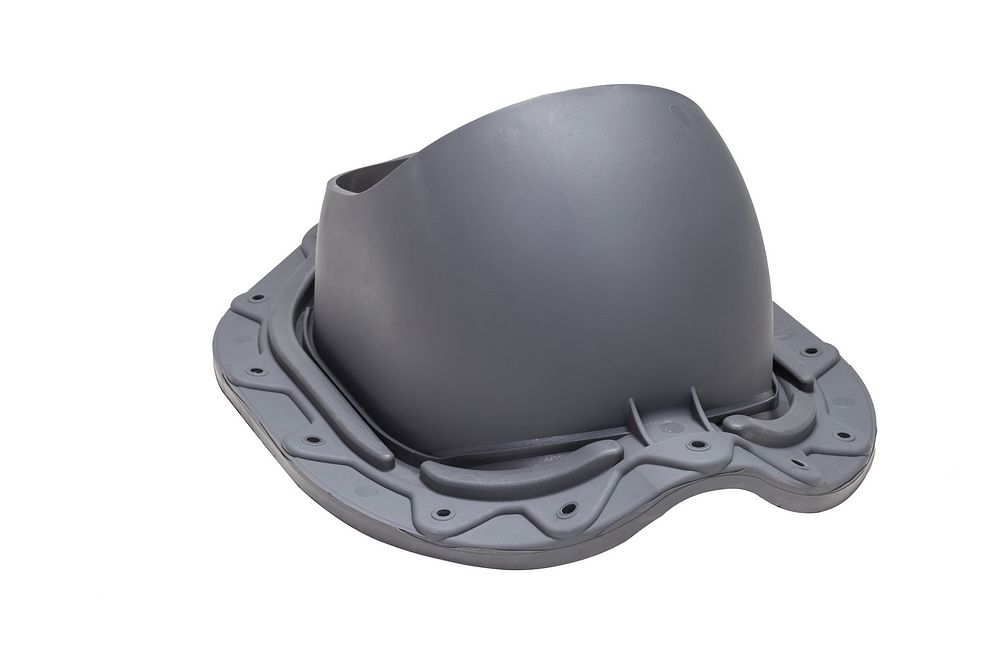

Grey - RAL7015 75177

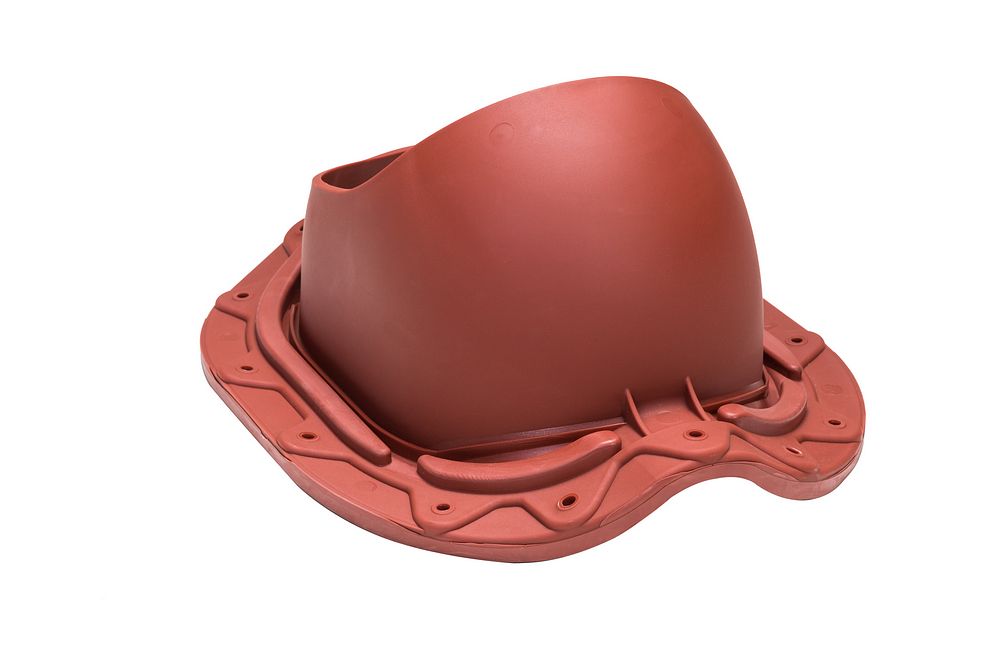

Red - RAL3009 75178

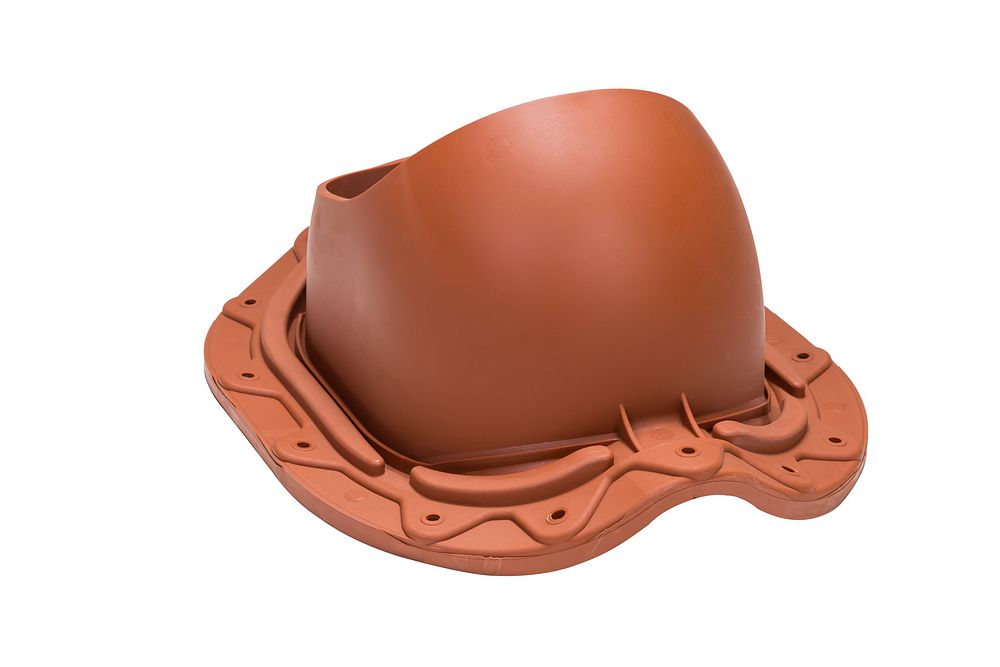

Brick Red - RAL8004 75179

In the box

  • Pass-through
  • Underlay ring
  • Sealing compound
  • Screws
  • Installation instructions/template

Price list

PDF
VILPE Price List
File size: 701.14 KB

Want to place an order?
Need help?

Installation

Installation Guide
PDF
Profiled Steel pass-through set Installation
File size: 941.42 KB
] %} #}
