VILPE Classic Vino Pass-Through

Plain standing seam roofing or if retrofitted, also felt roofing. Thick rubber seal on the bottom of the flange. Sealing compound (not incl.) required on felt roofing. Replaces VILPE® Classic pass-through. Minimum roof pitch 1:5 (11,5°).

VILPE Classic Vino Pass-Through

Product Description

VILPE® Classic Vino is a new, progressive pass-through for metal and felt roofings. It is possible to install on roof pitches of up to 57 degrees. The collar or the pass-through is shaped steeper than before, enabling it to be installed on roofs steeper than what the traditional VILPE® Classic pass-through could be. The stylish and angular VILPE® Classic Vino is also more elegant on a linear sheet metal roofing than its predecessor.

Installing the VILPE® Classic Vino pass-through series is simple and easy: the kit includes all installation materials and clear instructions.

The pass-through enables installing VILPE® roof fans, exhaust pipes, ventilation pipes and antenna pass-throughs on the roof. Designed for pipes with Ø of 75, 110, 125 or 160 mm.

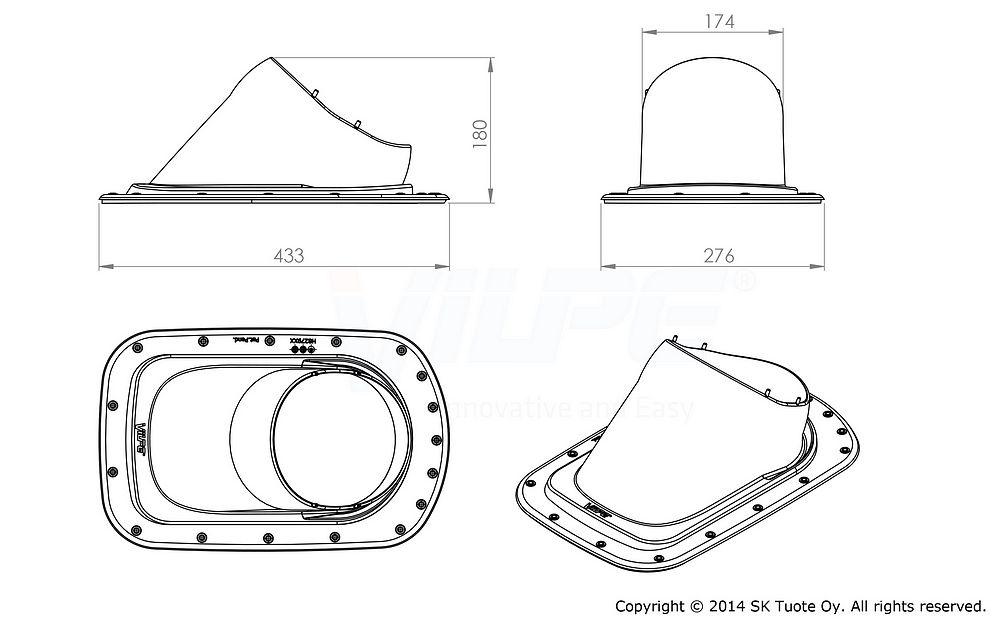

Dimensions

Dimension image
COLOUR PRODUCT N.
Black - RAL9005 746022

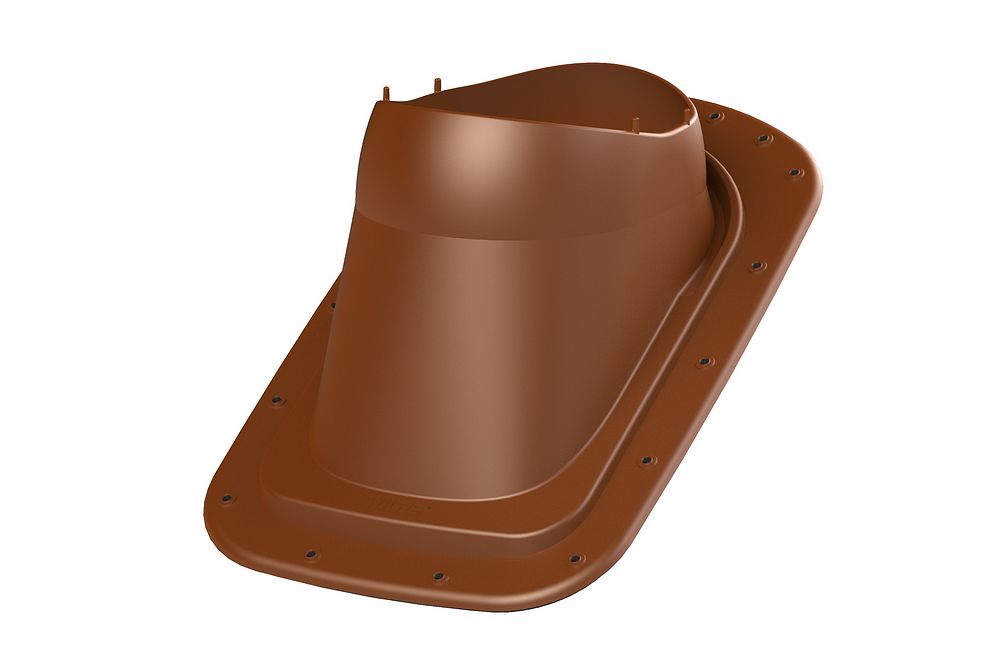

Brown - RAL8019 746024

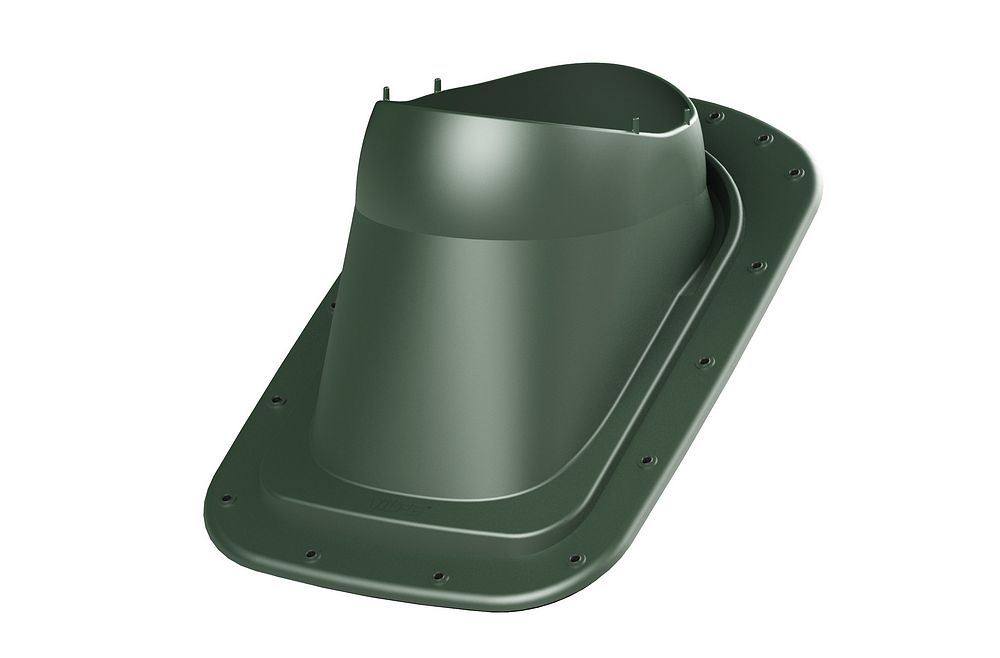

Green - RAL6020 746026

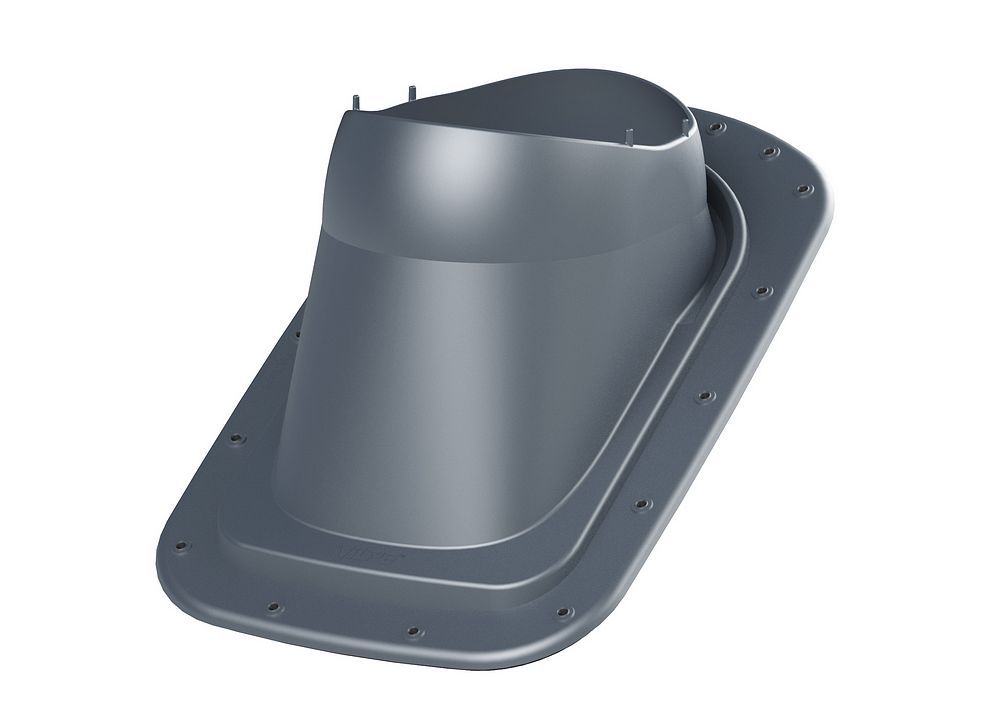

Grey - RAL7015 746027
Red - RAL3009 746028
Brick Red - RAL8004 746029

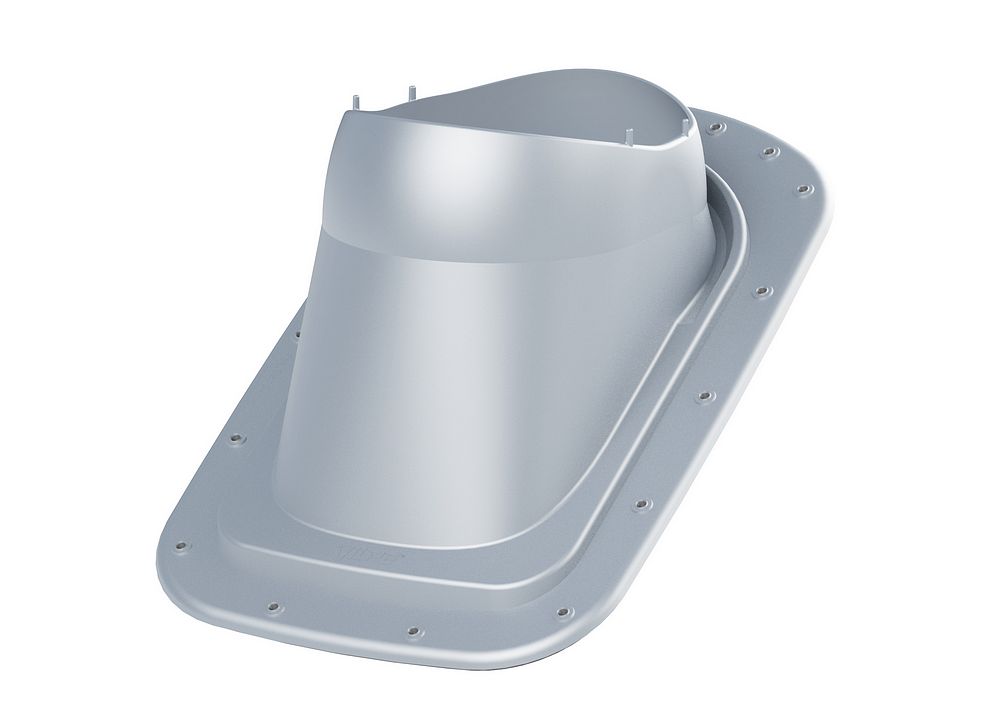

Light Grey - RAL7040 746021

In the box

  • Pass-through
  • Underlay ring
  • Screws
  • Installation instructions/templates for underlay seal and the pass-through
