Turbowent - Square Base

Chimney cowls are designed to stabilize and increase chimney draft in ventilation and smoke ducts. Chimney cowls are mounted on the top of chimney ducts. Their purpose is to prevent downwind, rain, ice build-up and bird nesting, but most of all they are designed to generate a chimney draft using the force of the wind. Chimney cowls are available in two versions, one, with a flat openable square base, is suitable for flat chimneys, while the openable inlet pipe version is for installation on existing chimney liners.

Turbowent - Square Base

Features & Benefits

  • Increases chimney draft
  • Prevents reverse draft
  • Extends chimney life
  • Attractive design
  • Reduces fuel consumption
  • Improves the quality of combustion
  • Stainless steel construction
  • Easy installation and inspection
  • Available inlet diameters (mm) 150, 200, 250, 300
  • Square base version

Dimensions

Ø (mm) 150/200/250/300
D ~260/320/380/460
dw 150,4/200/250,7/298
H 305/340/410/425
h1 100/100/105/90
A 250/330/380/430
B 208/284/330/380
d1 6,2/6,2/6,2/6,2

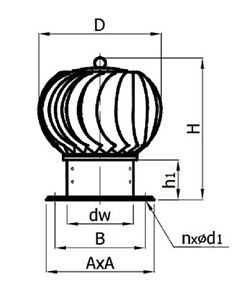

Dimension image
Max. working temperature 150 °C
Sound pressure level 26 dB

Our tip

Turbowent with a square base is a perfect choice for flat chimneys. The 300 mm version can not be opened.
