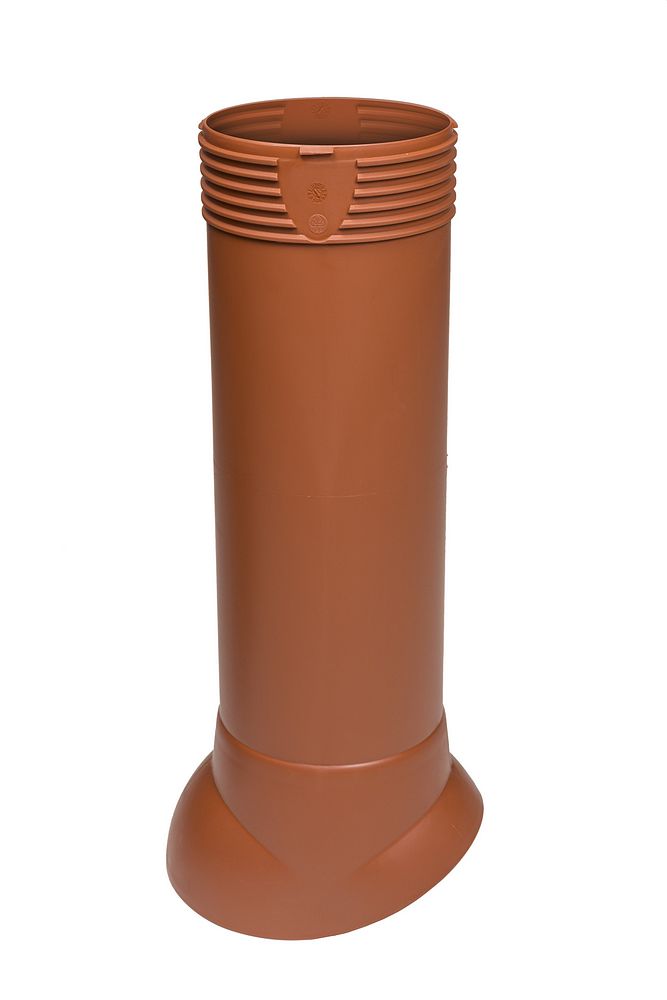

VILPE 160P/500 Ventilation Pipe

Uninsulated ventilation pipe without a cowl. A pass-through according to the roofing material is required separately. VILPE® AP Cowl 160 is required for ventilation of attic space and roof structures. Duct size Ø 160 mm, height above roof approx. 500 mm.

VILPE 160P/500 Ventilation Pipe

Product Description

Due to the risk of freezing, uninsulated ventilation pipes are not recommended for regions where severe frost may occur. The height of an uninsulated ventilation pipe is 200, 300 or 500 mm with a diameter of 160 mm. The ventilation pipe is available with or without a cowl. The height of the cowl is approx. 150 mm. The screws for installing the pipe to the roof pass-through set are included.

In addition to the pipe, a pass-through set is needed, chosen according to the roofing, and, if required, a flex pipe for easy connection of the ventilation pipe to the sewer pipe.

Dimensions

Dimension image
COLOUR PRODUCT N.
Black - RAL9005 74160
Brown - RAL8019 741604
Green - RAL6020 741606
Grey - RAL7015 741607
Red - RAL3009 741608
Brick Red - RAL8004 741609
Light Grey - RAL7040 741601

In the box

  • Ventilation pipe
  • Screws

Price list

PDF
VILPE Price List
File size: 937.25 KB

Want to place an order?
Need help?

Installation

Installation Guide
PDF
Instalation, operating and maintanance instructions
File size: 7.60 MB
