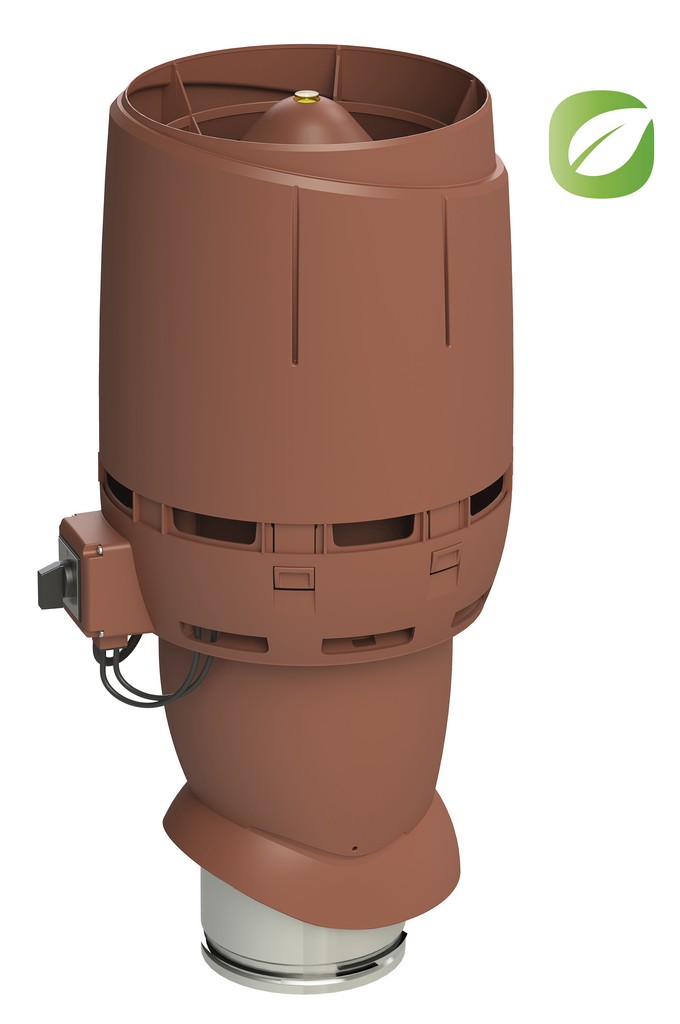

VILPE ECo160P/500 Flow Roof Fan

Energy efficient insulated roof fan with the FLOW-cowl. Uses a DC motor with a 0-10V control voltage. Includes a galvanized steel inner pipe with a lip seal. A VILPE® ECo controllers and a VILPE® pass-through chosen according to roof type and material sold separately.

VILPE ECo160P/500 Flow Roof Fan
Files to download

Product Descriptions

Energy efficient insulated roof fan with the FLOW-cowl. Uses a DC motor with a 0-10V control voltage. Includes a galvanized steel inner pipe with a lip seal. A VILPE® ECo controllers and a VILPE® pass-through chosen according to roof type and material sold separately.

Dimensions: Duct size Ø 160 mm, external Ø 225 mm, height above roof approx. 500 mm.

Dimensions

Duct size 160
Current 0,7 A
Fan Type DC
Power 85 W
Rotation Speed 2580 rpm
Voltage 230V/50Hz
Dimension image
COLOUR PRODUCT N.
Black - RAL9005 350252
Brown - RAL8019 350254
Green - RAL6020 350256
Grey - RAL7015 350257
Red - RAL3009 350258
Brick Red - RAL8004 350259
Light Grey - RAL7040 350251

In the box

  • Roof fan
  • Screws
  • Installation, operating and maintenance instructions
