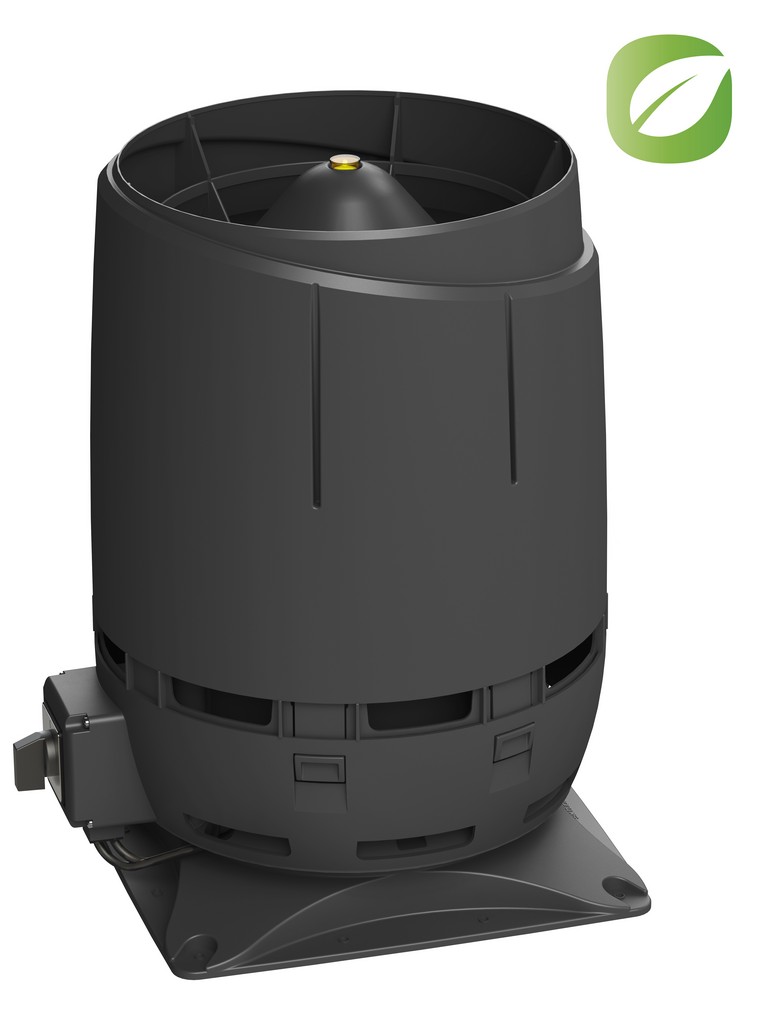

VILPE ECo110S Flow Roof Fan

Energy-efficient roof fan with the new Flow-cowl and a EC motor for radon ventilation. Also suitable for ventilating a garage or an ecological toilet. Compatible for VILPE® 110 mm insulated pipe or other pipe with external dimensions Ø 160 mm. The motor is specially protected and preadjusted to 3V. If necessary, can be adjusted in a potentiometer situated in the cowl of the roof fan. Separate controller is not needed. An installation set for a flat surface is included.

VILPE ECo110S Flow Roof Fan
Files to download

Product Descriptions

Energy-efficient roof fan with the new Flow-cowl and a DC motor for radon ventilation. Also suitable for ventilating a garage or an ecological toilet. Compatible for VILPE® 110 mm insulated pipe or other pipe with external dimensions Ø 160 mm. The motor is specially protected and preadjusted to 3V. If necessary, can be adjusted in a potentiometer situated in the cowl of the roof fan. Separate controller is not needed. An installation set for a flat surface is included.
Dimensions: Duct size Ø 110 mm, (installation set 300 x 300 mm, installation area must be at least the same size).

Dimensions

Duct size 110
Current 0,75 A
Fan Type DC
Power 83 W
Rotation Speed 3200 rpm
Voltage 230V/50Hz
COLOUR PRODUCT N.
Black - RAL9005 350282
Brown - RAL8019 350284
Green - RAL6020 350286
Grey - RAL7015 350287
Red - RAL3009 350288
Brick Red - RAL8004 350289
Light Grey - RAL7040 350281

In the box

  • Roof fan
  • Installation set
  • Screws
  • Installation, operating and maintenance instructions
